Exacta
Exacta - new linking machines
For more than sixty years, EXACTA has been producing traditional linking machines for knitwear and socks, machines for similar-linking and cup seamers.
Exacta industrial machines for knitting are technologically advanced and continually updated thanks to the constant attention to product innovation.
Exacta industrial machines for knitting are technologically advanced and continually updated thanks to the constant attention to product innovation.
We suggest some models of Exacta linking machines selected from the window of our store, please contact us if you are interested in a linking machine that we have not presented here, our staff will be happy to provide any additional information.

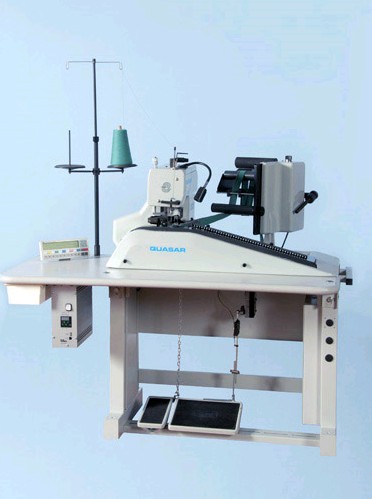

Exacta Quasar
Exacta Quasar is a completely innovative machine. The function of the point dial points-holder is performed by a ribbon in horizontal position.
Compared to the other linking machines, the Quasar has got a tested system for the feeding and for the automatic insertion of the trim.
The insertion of the trim is done through guides, specially designed and made with extreme care to solve the problems of medium-fine knitwear.
The guides are available from 12 mm to 90 mm trim width.
The trim appears to have a simile linked quality on the right side, while on the reverse side it is linked.
The ribs always remain parallel, as the transport of the trim is made by two rollers in synchronized movement.
Furthermore, thanks to an innovative device to apply on Quasar, it is also possible to perfectly imitate tubular and Y-trims linking.

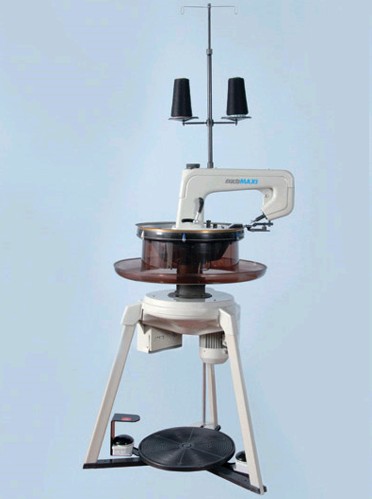

Linking machine Exacta Maxi
Exacta Maxi – hooked needle linking machine
The Exacta Maxi linking machine has got a bigger point dial, a comfortable central arm that gives an easier maneuverability, better performances and an innovative design.
Thanks to our new patent, a greater elasticity of the chain stitch has been achieved, therefore eliminating any possible claim on the finished garment.
The stand can be:
Standard: with foot controls, one button for starting and stopping the linking machine, and another one to double the speed.
Electronic: in addition to the advantages of the standard stand, it offers the electronic control of the motor speed for gradual variations.
Technical Specifications
Hooked needle outside the point dial.
Thread feeder inside the tub.
Simple chain stitch to achieve maximum elasticity (1994 patent).
Point dial in continuous motion on roller bearings, big diameter, ø 460 mm (= approx. 18").
Stainless steel tilted upwards points to facilitate the linking operation.
Point dial disengagement in a comfortable position.
“Matic” device, for the automatic engagement of the point dial when the machine is turned on.
Very compact arm placed on the plate, leaving a wide visibility while the machine is in operation.
Measuring ring with several pointers sliding in both directions.
Garment holder in transparent plastic material.
Tension device with caps opening synchronized with the point dial disengagement control.
Speed 1400 r.p.m. max and depending on the gauge.

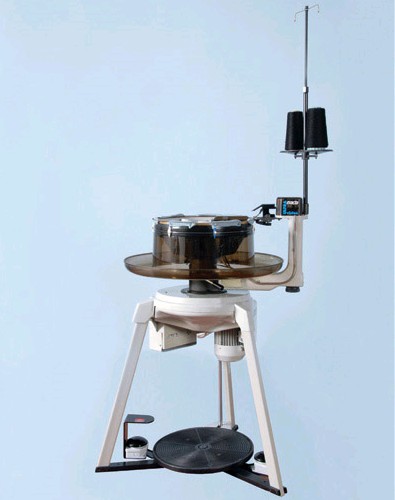

Linking machine Exacta Ultravision
Exacta Ultravision – linking machine with internal needle
The Exacta Ultravision linking machine has got an eye needle inside the point dial and a traditional looper.
The knitwork is linked from the reverse side.
Available in a range of gauges from 3 to 30.
The stand can be:
Standard: with foot controls, one button for starting and stopping the linking machine, and another one to double the speed.
Electronic: in addition to the advantages of the standard stand, it offers a three-phase motor controlled by a frequency converter for gradual variations of speed.
Single thread chain stitch: on request, the machine can be supplied as well with a device which allows a quick change from single to double chain stitch.
Both the single and the double thread chain stitches will come out to be very elastic and regular.
Technical Specifications
Straight eye needle inside the point dial.
Curved looper with completely independent horizontal and vertical movements.Single thread chain stitch or, on request, special device for a quick change from single to double chain stitch, with axial traverse of cam block.
1+2 threads quick change from single to double chain stitch.
Point dial in continuous motion on roller bearings, ø 408 mm (= approx. 16").
Tilted upwards points to facilitate the linking operation.
Point dial disengagement: lever device placed under the tub.
“Matic” device, for the automatic engagement of the point dial when the machine is turned on.
The lateral arm, placed below the machine head, leaves the plate completely free, hence turning it into a working and support surface.
Measuring ring: with several pointers sliding in both directions.
Garment holder: in plastic material.
Thread tightener with caps opening synchronized with the point dial disengagement control.
Speed: 700 r.p.m. max., according to the different gauges.

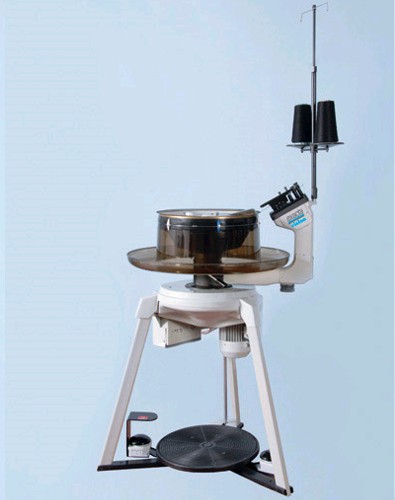

Linking machine Exacta Vision
Exacta Vision - linking machine with external needle
The Exacta Vision linking machine has got an eye needle outside the point dial and a traditional looper. The knitwork is linked from the right side.
The machine allows obtaining very elastic chain stiches.
Available in a wide range of gauges from 2 ½ to 18.
The stand can be:
Standard: with foot controls, one button for starting and stopping the linking machine, and another one to double the speed.
Electronic: in addition to the advantages of the standard stand, it offers the electronic control of the motor speed for gradual variations.
Single thread chain stitch: on request, the machine can be supplied as well with a device which allows a quick change from single to double chain stitch.
Both the single and the double thread chain stitches will come out to be very elastic and regular.
Technical Specifications
Straight eye needle outside the point dial.
Single thread chain stitch or, on request, special device to allow a quick change from single to double chain stitch, with axial traverse of cam block.
Point dial in continuous motion on roller bearings, ø 408 mm (= approx. 16").
Tilted upwards points to facilitate the linking operation.
Point dial disengagement: lever device placed under the tub.
“Matic” device, for the automatic engagement of the point dial when the machine is turned on.
Lateral arm placed below the machine head, in order to leave the plate completely free, hence turning it into a working and support surface.
Measuring ring: with several pointers sliding in both directions.
Garment holder in transparent methacrylate.
Thread tightener with caps opening synchronized with the point dial disengagement control.
Speed: 800 r.p.m. max., according to the different gauges.
Single-phase electric power 50/60 Hz. 220V. (for inverter)
