Sewing and knitting machines

Rimoldi – new sewing machines

Rimoldi was founded in 1847 as a manufacturer of Italian industrial sewing machines.
All Rimoldi & CF sewing machines are produced in Italy.
In this section you’ll find some models of Rimoldi sewing machines, in our shop we can offer other models, please contact us for more information.

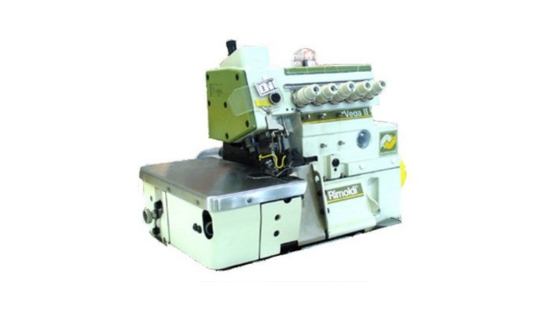

Rimoldi Vega II overlock machine

Rimoldi Vega II overlock machine

The Vega II is an overlock machine with 1-2-3 needles with safety stitch, fast and with excellent performances for all assembly operations. It has an external oil filter, simplified threading and sewing adjustment, reduced maintenance and easy looper disengagement on class F29.

The Vega II overlock machine is versatile, thanks to the special attention in the design of the moving parts that contribute to the execution of the seam.

Vega II offers a wide range of products that boast excellent performances:

  • F17: overlock machine with overlock stitch, with cylindrical arm for seams on small diameter garments
  • F20: double chain stitch (401) overlock machine, 1 needle 2 threads and 2 needles 4 threads
  • F27: overlock machine with overlock stitch, 1 needle 2 threads (503), 1 needle 3 threads (504), 2 needles 3 threads (509) and 2 needles 4 threads (512-514)
  • F29: safety stitch overlock machine, 2 needles 4 threads (515), 2 needles 5 threads (516), 3 needles 6 threads (401+515) and 3 needles 7 threads (401+516)

Technical Specifications

Speed (up to 9000 stitches / minute)

New patented feeding system to improve the advancement of the fabric during the sewing

Low inertia fabric presser bar

Forced pump lubrication

Designed to accept a wide range of devices

Special devices for Vega II

  • Mechanical apparatus to operate the differential when the machine is working: allows you to change the differential ratio during sewing by knee press.
  • Footlifter: pneumatic footlifter device by knee press or back treadle on the platform.
  • Pneumatic needle cooling apparatus: it reduces the temperature of the needle point.
  • Vertical type chain-cutter
  • Pneumatic tape cutter: this device is controlled by knee press or back treadle on the engine pedal. Equipped with a knife fitted behind the needle plate - maximum cutting width 18 mm
  • Return of the chain stitch at sewing beginning
  • Automatic cut/insertion of the elastic band
  • Horizontal type chain-cutter with suction on the work surface behind needle-plate: the chain stitch, drawn through a jet of compressed air (Venturi system), is automatically cut flush with the fabric, at the beginning and end of sewing.

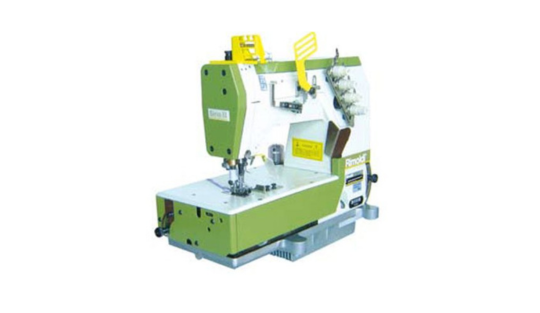

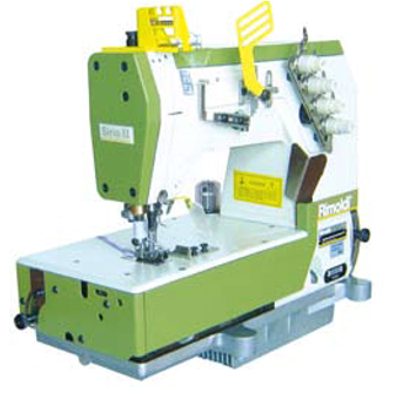

Rimoldi Sirio II flatbed machine

Rimoldi Sirio II flatbed machine

Sirio II is a flatbed machine for interlock stitch, 1 or more needles, for collaret and elastic lace applications; for decorative joining of seams, hemming and topstitching.

Sirio II offers excellent production performances: speed up to 7000 stitches / minute, new feeding system and oil pump lubrification, designed to accept many electronic and pneumatic devices.

Sirio II offers a wide range of products:

  • 61F: flatbed machine, which includes 2 needles (406) and 3 needles (407)
  • 63F: flatbed machine, which includes 2 needles (602), 3 needles (605) and 4 needles (607)
  • 64F: flatbed chain stitch machine (401)
  • 68F: 2 and 3-needle double chain stitch 401

It has an external oil filter, simplified threading and sewing adjustment, reduced maintenance and easy looper chain stitch disengagement on class F2.

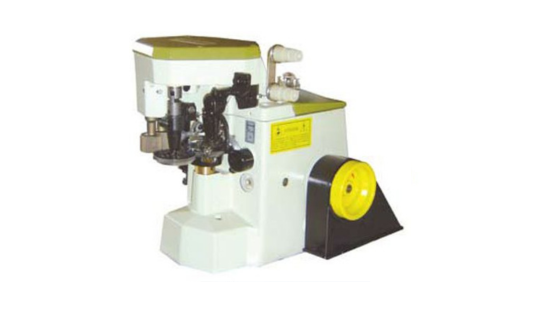

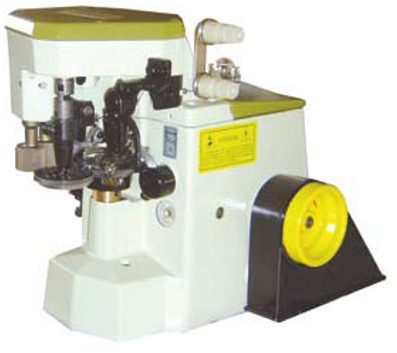

Rimoldi Altair sewing machine

Rimoldi Altair sewing machine

The Rimoldi Altair sewing machine is a vertical cup seamer machine for single and double chainstitch seams, it has instant stitch length adjustment by push-button and chain-off rollers synchronized with feed.

The Rimoldi Altair sewing machine is versatile, has an uncurling guide that makes the edges perfectly matched and uncurled, a right/reverse automatic adjustable guide and a right/reverse manual adjustable guide.
